Replicator PRO™

Advanced Physiological Flow System

Replicator PRO™ is an advanced endovascular replication system that physically simulates valvular, vascular, and neurovascular disease states with matched physiological flows.

With flow powered by a realistically beating 3D heart, the entire model delivers a life-like hemodynamic performance across a broad range of blood pressures, heart rates, and cardiac outputs that can be manipulated via the Replicator app.

Used in clinical training and research & development, this modular solution yields a versatile patient model that is experienced with true tactile feedback when utilizing endovascular devices.

Advanced medical device research and development
Accelerates the operator learning curve
Hones endovascular surgical skills and competency
Improves patient outcomes

This Product is designed for:

Interventionalists within Neuroradiology, Cardiology, Radiology, including fellows and residents in training and cathlab teams

Medical professionals working in a cath lab

Medical device educational and field staff

Vascular Surgeons

Limitless Versatility

Highly modular system for a broad range of endovascular applications.

Realistic Representation

Replicator PRO's human-like functioning allows for a high fidelity device performance at any event.

Highly Portable

Built to support professionals anywhere with the ability to easily swap vascular modules for various cases.

Angiography Compatible

Fully compatible under angiography with no image artifacts (metal-free system).

Limitless Versatility

Configure various neurovascular, vascular, and radial silicone vessels to the system from 3D rotational angiography, CTA, or custom.

Realistic Representation

SIM Agility allows for a high-fidelity device performance for pre-operative training and patient-specific rehearsal under live fluoroscopy (no image artifacts)

Highly Portable

Light, fast set-up and breakdown (3-minutes), with straightforward operation fully integrated pump with adjustable systemic flow - built to support professionals anywhere, with the ability to swap modules for various cases easily.

Angiography Compatible

Fully compatible under angiography with no image artifacts (metal-free system).

Limitless Versatility

Highly modular system for a broad range of endovascular applications.

Realistic Representation

SIM Core's human-like functioning allows for a high fidelity device performance at any event.

Highly Portable

Built to support professionals anywhere with the ability to easily swap vascular modules for various cases.

Angiography Compatible

Fully compatible under angiography with no image artifacts (metal-free system).

Limitless Versatility

Highly modular system for a broad range of endovascular applications.

Realistic Representation

Replicator PRO's human-like functioning allows for a high fidelity device performance at any event.

Manipulate & Customize

Alter flow rates and customize anatomies from patient-specific scans.

Angiography Compatible

Fully compatible under angiography with no image artifacts (metal-free system).

Key Benefits

The Replicator PRO flow system is what powers and supports consistent and reliable results each and every time.

Multiple Access points: Includes femoral, transapical, radial, axillary, and carotid entry points.

High-performance silicone vasculature with advanced, life-like feedback allows you to perform minimally invasive procedures including EVAR, TEVAR, TAVR, FEVAR, and more. The system allows you to easily switch between procedures with quick configuration of silicone vasculature.

Record your sessions with PRO under angiography for later insights. The system produces clear imagery free of artifact and provides a means for users to look back and learn as well as demonstrate and teach.

The system includes an anatomically accurate 4-chamber heart with replaceable valves. The 3D silicone model imitates a beating heart that powers the flow of the system through the anatomy. This flow is further manipulated to provide unique case scenarios for any goal.

Change the heart rate, blood pressure, and cardiac output with the Replicator PRO app. Fit for a variety of case scenarios to output any physiological behavior that is relevant to your goals.

Procedure Versatility

Enabling a Range of Interventional Procedures

Structural Heart

TAVR: Replaceable, physiologically functional aortic valve

Aortic Disease

EVAR and TEVAR procedures
Modular aortoiliac for range of interchangeable vasculature
Patient-specific vasculature available

Neurovascular

Flow diversion
Embolization
Coil Embolization
Mechanical Thrombectomy•
Balloon-assisted coiling
Stent-Placement

Peripherial Vascular

Visceral aneurysm embolization
Designed for anatomical expansion

Multiple Access

Femoral, axillary, carotid, apical and radial

Features & Benefits

Enables effective training on interventional procedures and devices to accelerate product development and research with confidence
One system, multiple specialties -Structural heart, Vascular and Neurovascular

Cranial housing (optional)

Realistic head enclosure.1)

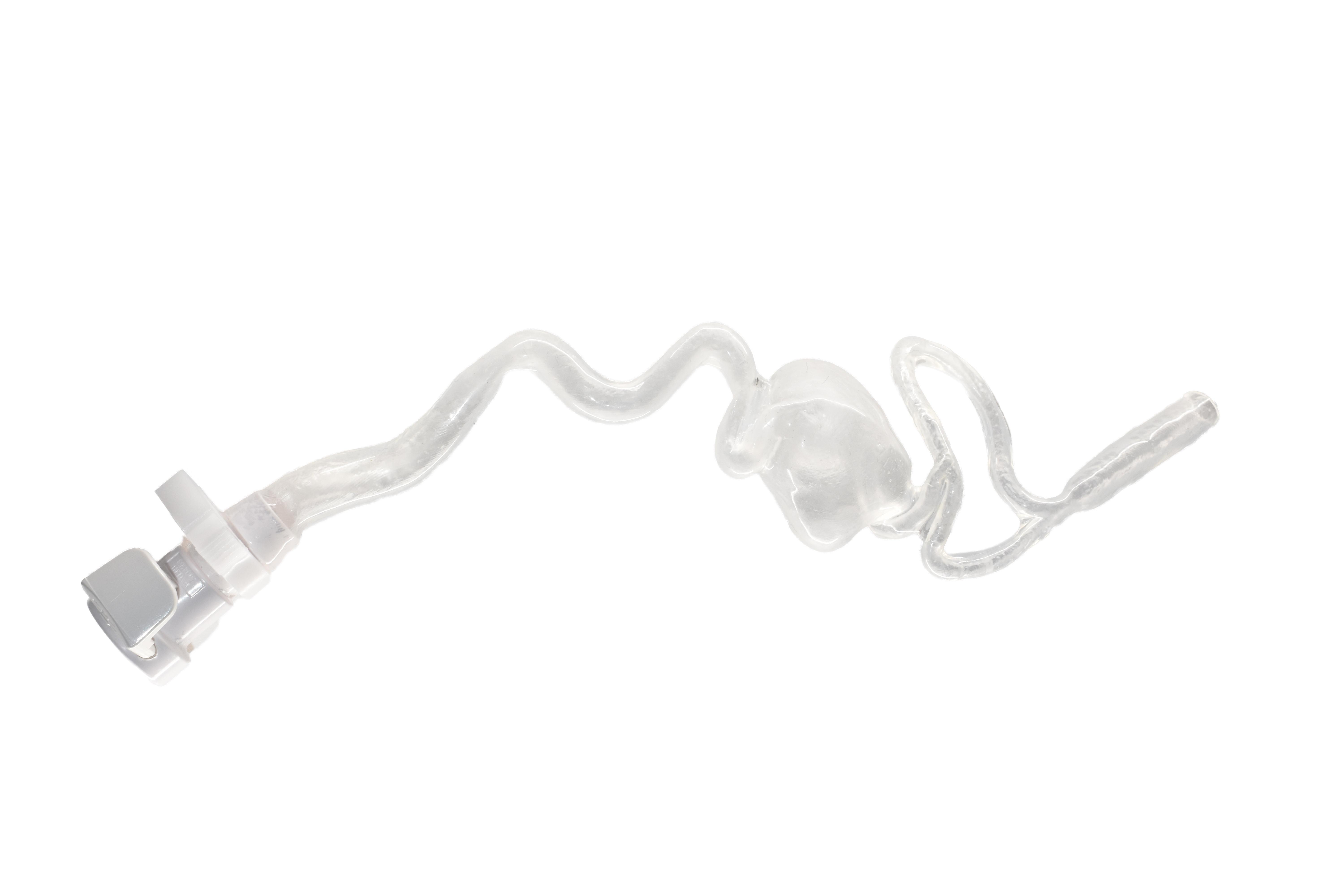

Reflex™ performance silicone vasculature
Gel suspension replicates vessel deflection
Aneurysm, stenosis, and ischemic stroke replication
Plug-and-play

Structural heart

Anatomically correct heart and chamber positions
Replaceable silicone aortic valve
Three heart orientations

Aortoiliac vasculature

Accommodate several levels of tortuosity and aneurysms sizes
Multiple access points - up to 26F

Endovascular responsive terrain

Vasculature tethering enables realistic device behavior
Platform replicates pelvic curvature

Angiography compatible

Clear imagery free from artifact

Wireless connectivity

Variety of scenarios to output any physiological behavior controlled by app

Ease-of-use

Designed for convenience, offering a self-priming system, custom or pre-set operating modes and control tablet.

_{1. Also available in box enclosure or with bypass
2. Brachial & radial arteries, celiac trunk. mesenteric}

Technical Specification

Add-ons

Box or Head Neuro Enclosure, SIMulant Throumbus and ASIST KIT, SIMulant Blood, Radial Anatomy

Functional Data

Fluid amount required - 4 L
Controllable Flow Rate 2-8 L/min
Heat mode - reaches 37 C, in circa 15 minutes
Controllable Systemic
Pressure 60/40 to 200/180 mmHg(dependent on anatomy)
Controllable Heart Rate 40-120 BPM

Travel Friendly

Professional case - SKB model
Weight (all included) Case 1 - 26.1kg (57.5lb)
Case 2 - 34.0 kg (75lb)

Dimensions Weight:

Body 7.6kg (16.7lb) + Control 18.8 kg (41.4lb)
Size Assembled: 1399.9 x 506.5 x 259.0 mm (55.1 x 20 x 10.2 in)
Recommended table size: 180 x 50 cm (6.0 x 1.5 ft)

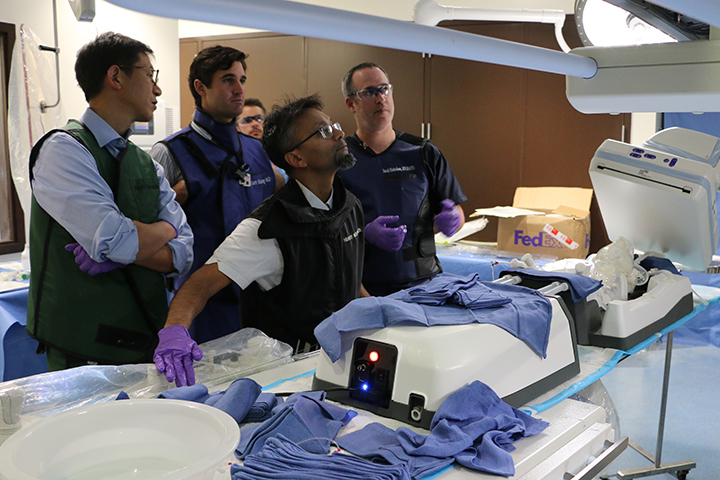

"You can get a very good idea of what the device feels like as you push it through tortuous anatomy and the resistance you feel as you deploy the device"

David Nicholson

Clinical Trainer

"This model helps physicians and the treating team give patients the best outcome, especially with new technologies that are novel and innovative, where there's a very steep learning curve"

Dr. Wilson Szeto

Vascular Surgeon

‍
